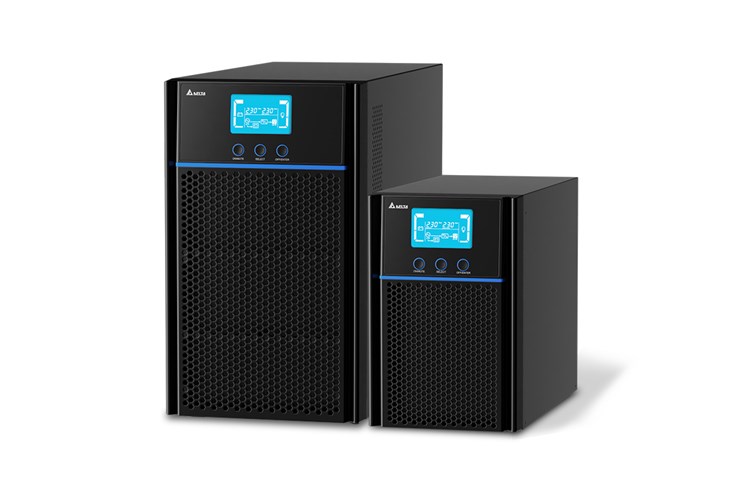

Amplon (> 1 kVA)- 1 kVA – N Gen3 Series 1/2/3 kVA

Small and Reliable Power Guardian for Office & Home Critical Appliances

The Amplon N Gen3 Series 1-3 kVA is an online double-conversion uninterruptible power system (UPS) in a best-in-class compact size tower design. It supplies clean sine-wave input power for IT and other sensitive equipment and prevents work interruption, data loss or equipment damage from voltage sags, spikes, harmonic distortion and other power failures.

Add to quote

SKU: 88221253 Category: DELTA UPS Tag: UPS

Description

Description

Features & Benefits
High Availability

Output power factor 0.9 provides more wattage to critical loads
True online double-conversion topology and zero transfer time to battery mode
Generator compatibility ensures clean, uninterrupted power to the loads during an extended power outage

Green with Low TCO

Capable of working in harsh electrical environments with wide I/P voltage range to minimize battery usage
Excellent overload capacity allows the overload condition to continue within the timeframe
AC-AC efficiency up to 90%, and ECO mode efficiency up to 95% for better energy savings

Easy Management

The intuitive LCD display provides UPS status information with the ability to configure locally
Supports multiple communication interfaces, including USB port, RS-232 port and Mini slot (option for mini SNMP, mini Modbus and mini relay I/O card) for remote monitoring and configuration
Battery self-test function ensures early detection of the battery status when batteries need to be replaced
