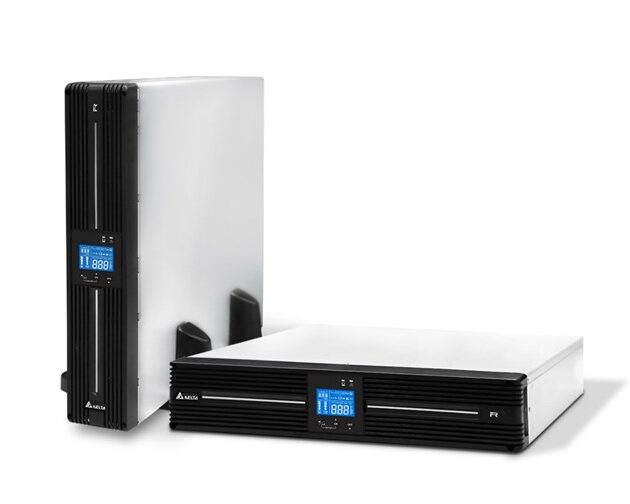

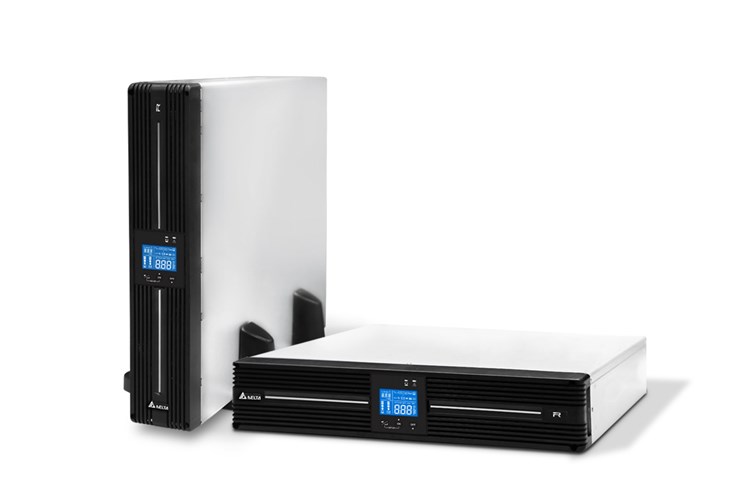

Amplon (> 1 kVA)- 1 kVA -R Series 1/2/3 kVA

Reliable power supply for small and medium enterprises

Delta?s Amplon R series is an online double-conversion rack-mountable UPS providing consistent sine-wave power to your critical equipment and reliable protection for IT equipment and data centers. The R series offers an output power factor of 0.9 and a best-in-class AC-AC efficiency of up to 93% for greater energy savings. The Amplon R series leads the industry in combining compact size, availability, flexibility, and low total cost of ownership.

Add to quote

SKU: 88221256 Category: DELTA UPS Tag: UPS

Description

Description

Features & Benefits
Availability

True online double-conversion topology provides zero transfer time to ensure maximum protection of the equipment
Watch-dog design of the DSP (Digital Signal Processor) increases reliability
Cold-start capability provides temporary battery power when the utility power is out
Operating temperature tolerance up to 50?C ensures critical loads? continuity
The Maintenance Bypass Box offers load continuity during battery replacement or other upgrades

Flexibility

Compact dimensions meet the needs of different rack cabinets
Convertible rack and tower configuration in 2U size cabinet
Excellent local communications through rotatable LCD display
Intelligent management software connectivity via RS232, mini slot or USB port

Low Total Cost of Ownership

Wide input voltage range reduces the chance of using the battery and extends battery life
Intelligent battery management sustains battery life and performance
High output power factor of 0.9 provides more real power to critical loads
High input power factor (pf > 0.99) and low harmonic distortion (iTHD < 3%) save upstream investment Up to 93% AC-AC efficiency and 96% efficiency in ECO mode results in marked energy cost savings Fan speed control by load level and room temperature optimizes performance
