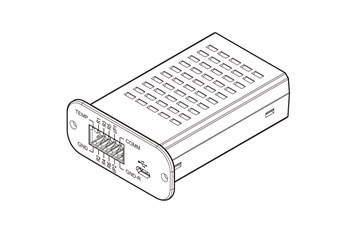

Connectivity -Min Relay I/O Card

Six relay output contacts: transmit the UPS information for users to monitor the UPS status

SKU: 88221273 Category: DELTA UPS Tag: UPS

Description

Description

Features & Benefits
Six relay output contacts: transmit the UPS information for users to monitor the UPS status

Each output relay is configurable to meet the users? needs for different UPS events
Each output relay has either Normally Open (NO) or Normally Closed (NC) configuration

Two input contacts: control the UPS

Each input contact is configurable for UPS shutdown or battery test
The UPS shutdown delay is adjustable

One temperature detection input contact: monitors the external temperature of the UPS (please contact service personnel for details).

One Micro-USB: makes the configuration easier via a PC.
