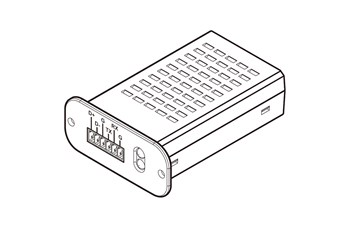

Connectivity – Mini Modbus Card

Provides your UPS the functionality of communication with your PC through MODBUS protocol

SKU: 88221274 Category: DELTA UPS Tag: UPS

Description

Description

Features & Benefits
Provides your UPS the functionality of communication with your PC through MODBUS protocol
Implementation of MODBUS RTU protocol
Provides MODBUS function including Read Coils/ Discrete Inputs/ Holding Registers/ Input Registers and Write Single Coil/ Single Register
Provides RS-485 and RS-232 ports. Your PC can communicate with the UPS through the RS-485 port or RS-232 port or both simultaneously
Provides alarm LEDs so that you can tell communication status quickly
Besides MODBUS protocol, also supports 3 Phase/ Regular protocol. You can select communication protocol through function switches
Provides firmware upgrade functionality through the RS-232 port
Specifications
Mode: lMini MODBUS Card
Dimensions: 87 x 69 x 30 mm
Weight: 50 g
Operating Temperature: 0~50?
Operating Humidity: 5~95% (non-condensing)
Power Input: 12 ? 2 Vdc
Power Consumption: 1.5 Watts (Max.)

Related products

Connectivity – SNMP Card

The SNMP Card provides management of an individual UPS by connecting the UPS directly to the network.
UPS Systems & Data Center infrastructure solutions

Delta?s InfraSuite Data Center Infrastructure Solutions are grouped into four main modules which optimize our customers? ability to maximize operating efficiency at the lowest cost, maintain a high level of flexibility and control for IT managers, quickly scale to meet

demand, and monitor data center solutions 24/7/365 from anywhere around the world. These modules are as follows:

Power Management,
Rack and Accessories,
Precision cooling
Environmental Management System.
The interlocking nature of the modules allows companies to implement fully integrated system architecture.
Ultron (> 10 kVA) -DPS Series 160-500 kVA

From 160 to 500 kVA, scalable up to 4000 kVA in parallel

Leading in power performance and efficiency

Delta’s Ultron DPS is a double-conversion and IGBT-rectifier three phase UPS. With the three level IGBT topology for both PFC (power factor correction) and inverter, the Ultron DPS features industry leading performance of up to 96% AC-AC efficiency. Thanks to Delta’s advanced digital PFC control, it also has low iTHD < 3% and high input power factor > 0.99 resulting in significant total cost of ownership (TCO) savings. Aiming to achieve the highest availability possible, Delta has enhanced special designs for battery management, swappable fans and ease of maintenance.To empower customers to make the optimal choice for their unique energy needs, the Ultron DPS series includes three different cabinet sizes: 160 kVA UPS~200 kVA UPS ; 300 kVA UPS~500 kVA UPS.

Excellent power performance and high system availability of the Ultron DPS provide customers with the benefits of a stable power supply, high power efficiency, low capital investment and low overall operation cost. To increase system reliability in the challenging electrical environments common for today’s businesses, Delta has designed the Ultron DPS with an input voltage range -40%~+20%, for clients looking to build a foundation on a N+X redundancy / hot-standby configuration. Intelligent fan speed control and redundant fan design that prevents overheating is also featured in the Ultron DPS.

With its state-of-art design, intelligent fan speed control and redundant fan design, Delta’s Ultron DPS UPS series provides a cornerstone for power performance and efficiency.
Amplon (> 1 kVA)- 1 kVA -N Series 1/2/3 kVA

High-performance power protection with greater energy savings

The Amplon N Series UPS is a true on-line, double-conversion 1kva UPS, 2kva UPS, or 3kva UPS housed in a compact tower. Double-conversion UPS systems are lighter in weight than other types of UPSs and can regulate output frequency from 50 to 60 hertz. The power-factor correction functions of such systems enable them to draw current from an AC line as smooth sine waves, instead of as pulses. It features significant advantages, including an output power factor of 0.9 and up to 93% AC-AC efficiency for greater energy savings.

Double-conversion UPS systems use less battery power and draw current from the battery without interruption. Built-in batteries provide critical loads with continuous and stable power in the event of a power interruption. Users enjoy nearly ideal electrical output performance and superior power quality.

The Amplon N Series is designed to eliminate disturbances to workstations, POSs, ATMs or home appliances. For longer backup time requirements you can add an external battery pack to enhance availability for critical applications.
