Description
Availability
True online double-conversion topology provides 24/7 full-time protection.
1+1 parallel redundancy or expansion without requiring additional hardware.
AC-start and battery-start capabilities.
Additional charger board can be added to reduce recharging time.
Optional maintenance bypass box for parallel redundancy with manual bypass switch.
External charger box enhances battery charging ability.
Flexibility
Rack or tower configuration.
Multi-language LCD display with blue backlight.
Optional external battery pack for longer backup time.
Low total cost of ownership
Output factor 0.9 delivers more real power.
High input power factor (pf > 0.99) and low harmonic distortion (iTHD < 5%).
Common battery installation enables two UPS in parallel to share one battery source for cost savings.
Wide input voltage range reduces battery discharging occurrence and prolongs battery lifetime. Technical Specifications
Model
RT-5K RT-6K RT-10K
Power Rating
5kVA/4.5kW 6kVA/5.4kW 10kVA/9kW
Input
Nominal Voltage
Voltage Range
200/208/220/230/240 Vac (single phase)
100 ~ 300 Vac*
5/6 kVA + Battery Pack
Current Harmonic Distortion
< 5% (full load) Power Factor > 0.99 (full load)
Frequency
40 ~ 70 Hz
Electrical Connection
Terminal block
Output
Voltage
200/208/220/230(default)/240 Vac (single phase)
Voltage Harmonic Distortion
< 2% (linear load), <3% (non-linear load)
Voltage Regulation
? 1% (static); ? 2% (typical)

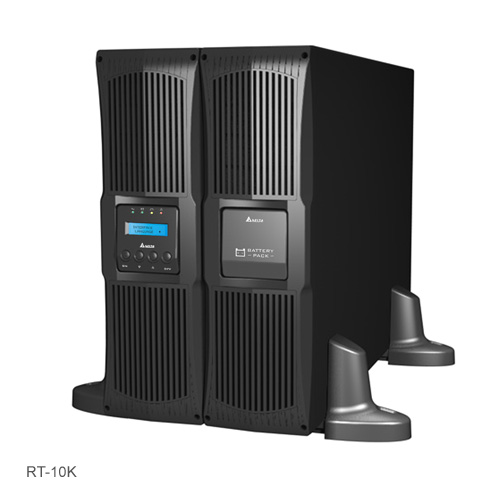

10 kVA + Battery Pack
Frequency
50 or 60 ? 0.05 Hz
Overload Capability
106 ~ 110%: 10 minutes; 111 ~ 125%: 5 minutes; 126 ~ 150%: 30 seconds
Electrical Connection
Terminal block
Crest Factor
3:1
Battery & Charger
Nominal Voltage
192 Vdc 192 Vdc 240 Vdc
Charge Current
Built-in: maximum 4A (adjustable);
Charger Box
Additional charger board (optional): maximum 4A (internal installation)
Electrical Connection
Exclusive cable
Interface
Standard
RS232 x 1, SNMP slot x 1, Smart slot x 1, Parallel port x 1
Conformance
Safety & EMC
CE, TUV, EN62040-1; CISPR 22 Class A
Others Features
Parallel Redundancy
1+1
Remote Control
REPO; Remote On/Off
Common Battery Installation
Yes
Efficiency
AC-AC
92% (full load)
Maintenance Bypass Box
ECO Mode
96% (full load)
Environment
Operating Temperature
0 ~ 40?C
Relative Humidity
0 ~ 95% (non-condensing)
Audible Noise
54 dBA**
Physical Dimensions
UPS
440 x 671 x 89 mm 440 x 671 x 89 mm 440 x 623 x 131 mm
(WxDxH)
Battery Pack
440 x 638 x 89 mm 440 x 638 x 89 mm 440 x 595 x 131 mm
Weight
UPS
15 kg 15.5 kg 21.3 kg
Battery Pack
36 kg 36 kg 66 kg
