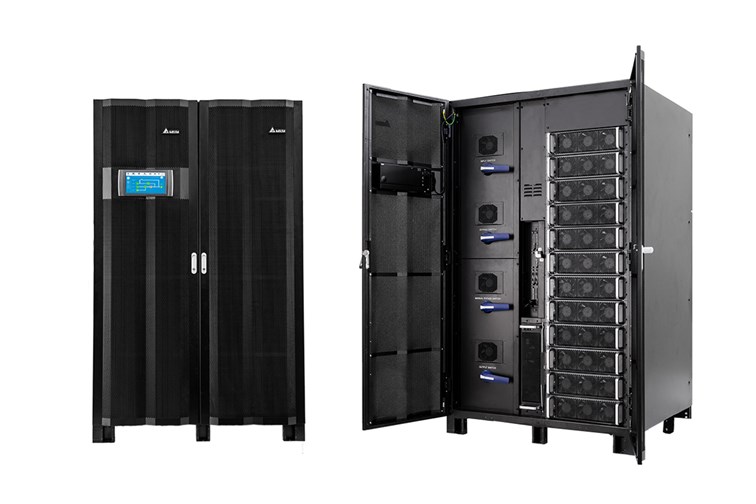

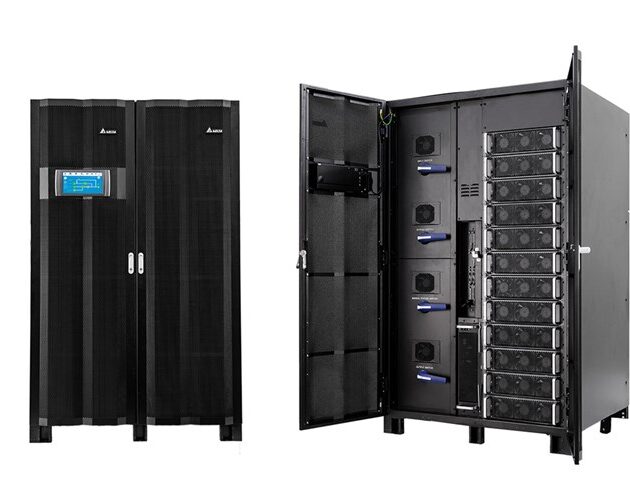

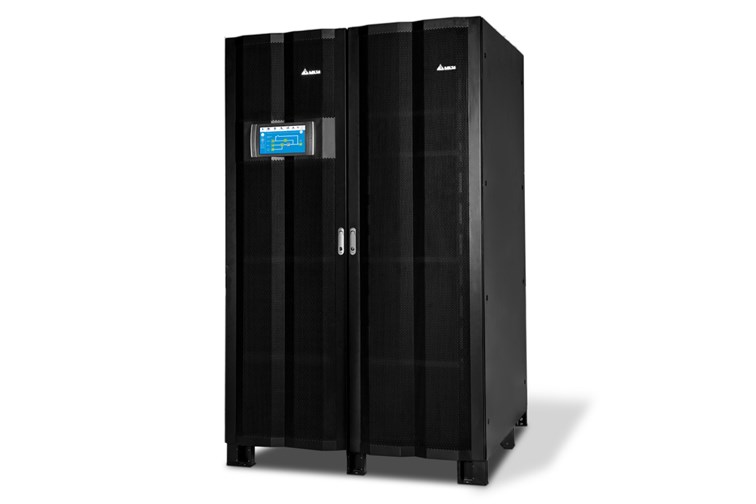

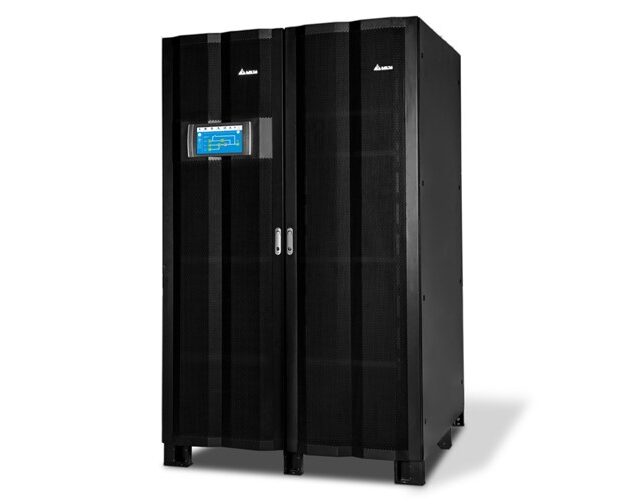

Modulon (Modular UPS) -DPH Series 50 – 300/500/600 kVA

Related products

•

  Connectivity – Mini SNMP IPv6 Card

  The Mini SNMP Card is a device that provides an interface between a UPS and a network. It communicates with the UPS, acquires information and remotely manages the UPS via a network system. The Mini SNMP supports public protocols including SNMP, HTTP and MODBUS TCP. You can effortlessly configure this Mini SNMP using a network system and easily obtain your UPS?s status and manage your UPS via the Mini SNMP.

  The interface includes a Network port, a COM port and LED indicators.

  Quick view
•

  Connectivity -Min Relay I/O Card

  Six relay output contacts: transmit the UPS information for users to monitor the UPS status

  Quick view
•

  Amplon (> 1 kVA)- 1 kVA -N Series 1/2/3 kVA

  High-performance power protection with greater energy savings

  The Amplon N Series UPS is a true on-line, double-conversion 1kva UPS, 2kva UPS, or 3kva UPS housed in a compact tower. Double-conversion UPS systems are lighter in weight than other types of UPSs and can regulate output frequency from 50 to 60 hertz. The power-factor correction functions of such systems enable them to draw current from an AC line as smooth sine waves, instead of as pulses. It features significant advantages, including an output power factor of 0.9 and up to 93% AC-AC efficiency for greater energy savings.

  Double-conversion UPS systems use less battery power and draw current from the battery without interruption. Built-in batteries provide critical loads with continuous and stable power in the event of a power interruption. Users enjoy nearly ideal electrical output performance and superior power quality.

  The Amplon N Series is designed to eliminate disturbances to workstations, POSs, ATMs or home appliances. For longer backup time requirements you can add an external battery pack to enhance availability for critical applications.

  Quick view
•

  Ultron (> 10 kVA) – HPH Series 60-120 kVA

  Best-in-class power protection with maximum power and cost efficiency

  Behind every great design there is an answer. Delta’s true online double-conversion Ultron HPH Series is the solution for small and medium data centers and mission critical applications requiring highly reliable power protection and unbeatable energy efficiency.

  The innovation behind the Ultron HPH Series UPS design incorporates low iTHD (< 3 %), 96 % AC-AC and 99 % ECO mode energy efficiency for increased Total Cost of Ownership (TCO) savings. Fully rated power (kVa=kW) without de-rating, the Ultron UPS offers leading AC-AC efficiency without sacrificing any available power requirements. Increased availability is further augmented through Ultron HPH watch-dog design. Quite simply, the HPH Series UPS from Delta is a best-in-class (three phase 60/80/100/120 kVA UPS) power protection system that combines maximum available power, unsurpassed energy efficiency, and superior power performance with a significant advantage: TCO savings. HPH is an ideal choice for datacenters as well as for industries involved in factory equipment, communication systems, computer network systems, medical systems, monitoring systems and more.

  Quick view
