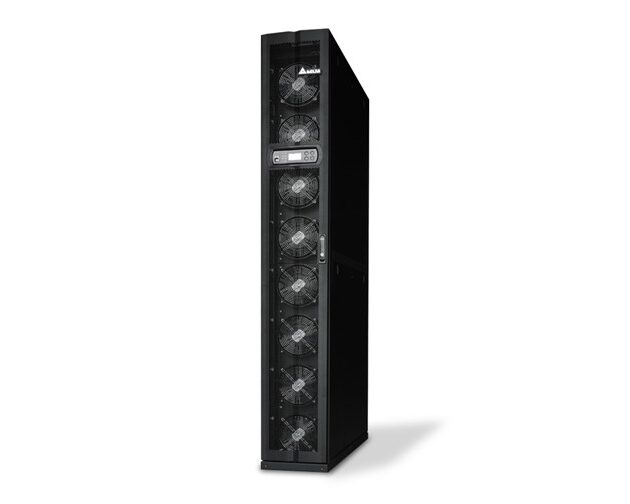

Precision Cooling- RowCool 29/43 kW, Chilled Water Cooling

RowCool for effective heat removal in data centers

Delta?s RowCool CW offers outstanding performance in high temperature chilled water applications via the optimized design of its heat exchanger. With industry-leading high cooling capabilities, the RowCool CW increases the overall cooling efficiency of data center precision cooling systems. The RowCool CW provides the best cooling solutions for data centers over hundreds of kW, focusing on both high efficiency and high density.

SKU: 88221286 Category: Tag:


Features & Benefits
High Availability

Built-in dual power supply with dual input for better power reliability
Rectifiers and fan that support hot swappable, greatly reducing maintenance time
Panel made of cold-rolled steel plate and coated with surface electrostatic spraying
Built-in leakage detector capable of leak display and alert
Modular rack design readily expandable by load to enable quick configuration
Built-in manual dehumidifying for quick and precise dehumidification
Supporting group control and used as backup

High Flexibility

Chilled water pipe suitable for both top and bottom insertion, with flexible configuration as required
Wheels on bottom for easy moving to locations that need cooling
Disposable filter with high efficiency (MERV 8 ASHRAE 52.2, 45mm); washable MERV 1 filter is available for purchase to save cost
Remote monitoring can be carried out through SNMP card, providing more comprehensive system protection

High Efficiency

To comply with the high power density of racks, the RowCool series cooling capacity can increase up to 60 kW (HCH1870) without changing footprint (for RowCool 43 kW)
When Applied to the high temperature settings of inlet water, outdoor units save on power consumption by up to 15~20% when the chiller water temperature increases from 5?C to 12?C
Continuously variable speed fan design for energy saving
Cooling system capable of variable flow control for energy saving
Built-in vortex wafer flow meter capable of monitoring chilled water flow that renders easy display of system status
High power density rack area
Environment that requires precise environmental control
